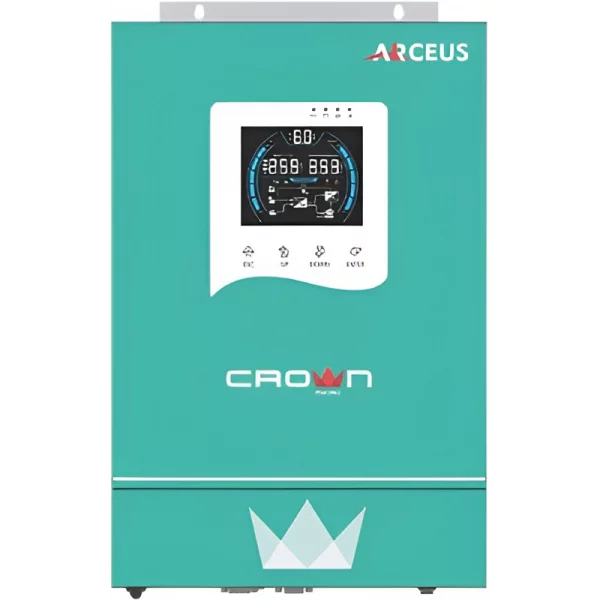

CrownMicro ARCEUS-3.6KW 24V PV-5000W MPPT Solar Inverter
৳48500
৳45500
0.00/5
See Reviews
প্রোডাক্ট কোড : P0263
Product Type: Physical
বিস্তারিত
Technical Specifications
| Parameter | Value |
|---|---|
| Model Name | ARCEUS-3.6KW |
| Rated Power | 3600VA / 3600W |
| AC Input Voltage | 220 / 230 / 240 VAC ± 3% |
| Voltage Range | 90–280VAC (single phase) |
| Output Power Factor | 1.0 |
| Waveform | Pure sine wave |
| Max. Efficiency (Peak) | 93.5% |
| Charger Type | MPPT |
| Max PV Input Power | 5000W |
| PV Voltage Range | 40–450VDC |
| Max PV Input Current | 18A |
| Battery Voltage | 24VDC |
| Battery Type | Lithium / Lead-acid |
| Display | 5.2” LCD, multifunction |
| Communication | RS485 / CAN / USB / Wi-Fi (Optional) |
| Dimension (W*H*D) | 312*430*120 mm |
| Net Weight | 7.8 kg |
| Operating Temp. | 0°C to 40°C |
| Storage Temp. | -15°C to 60°C |
