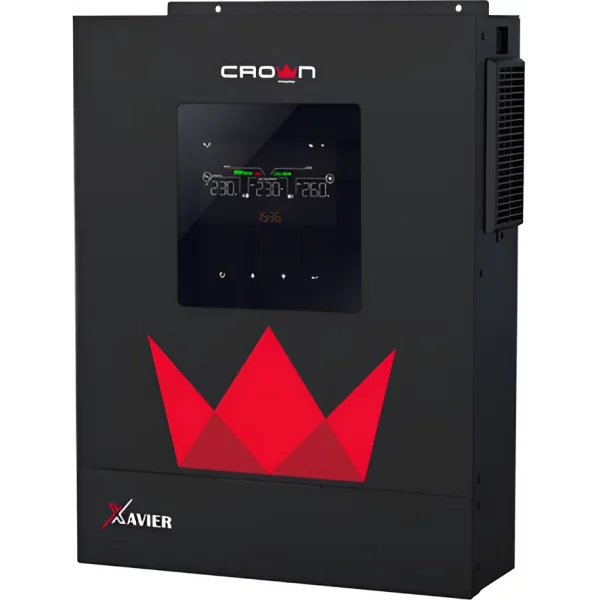

CrownMicro Xavier X-3KW-PF1 PV-3000 24V Solar Inverter - Price in Bangladesh
৳69950
৳59950
প্রোডাক্ট কোড : P0252
Product Type: Physical
বিস্তারিত
Technical Specifications
|
Category |
Specification |
|
Model
Name |
X-3KW-PF1
(PV-3000) |
|
Rated
Power |
3000VA
/ 3000W |
|
INPUT |
|
|
Voltage |
230VAC |
|
Selectable
Voltage Range |
170–280VAC
(for PCs) / 90–280VAC (for home appliances) |
|
Frequency
Range |
50Hz /
60Hz (auto sensing) |
|
OUTPUT |
|
|
AC
Voltage Regulation (Battery Mode) |
230VAC
±5% |
|
Output
Power |
3000W |
|
Surge
Power |
6000VA |
|
Efficiency
(Peak) |
93% |
|
Transfer
Time |
10ms
(for personal computers) |
|
Waveform |
Pure
sine wave |
|
BATTERY |
|
|
Battery
Voltage |
24VDC |
|
Floating
Charge Voltage |
27VDC |
|
Overcharge
Protection |
32VDC |
|
Battery
Type |
Lithium
/ Lead-acid |
|
SOLAR
CHARGER & AC CHARGER |
|
|
Solar
Charger Type |
MPPT |
|
Max PV
Array Open-Circuit Voltage |
450VDC |
|
Max PV
Array Power |
4000W |
|
MPPT
Range @ Operating Voltage |
60–400VDC |
|
Max
Solar Charge Current |
100A |
|
Max AC
Charge Current |
80A |
|
Max
Charge Current |
100A |
|
GENERAL
SPECIFICATIONS |
|
|
Dimensions
(D×W×H) |
100 ×
283 × 390 mm |
|
Net
Weight |
7.5 kg |
|
Communication
Interface |
RS232 |
|
OPERATING
ENVIRONMENT |
|
|
Humidity |
5%–95%
RH (non-condensing) |
|
Operating
Temperature |
−10°C
to +50°C |
|
Storage
Temperature |
−15°C
to +60°C |
